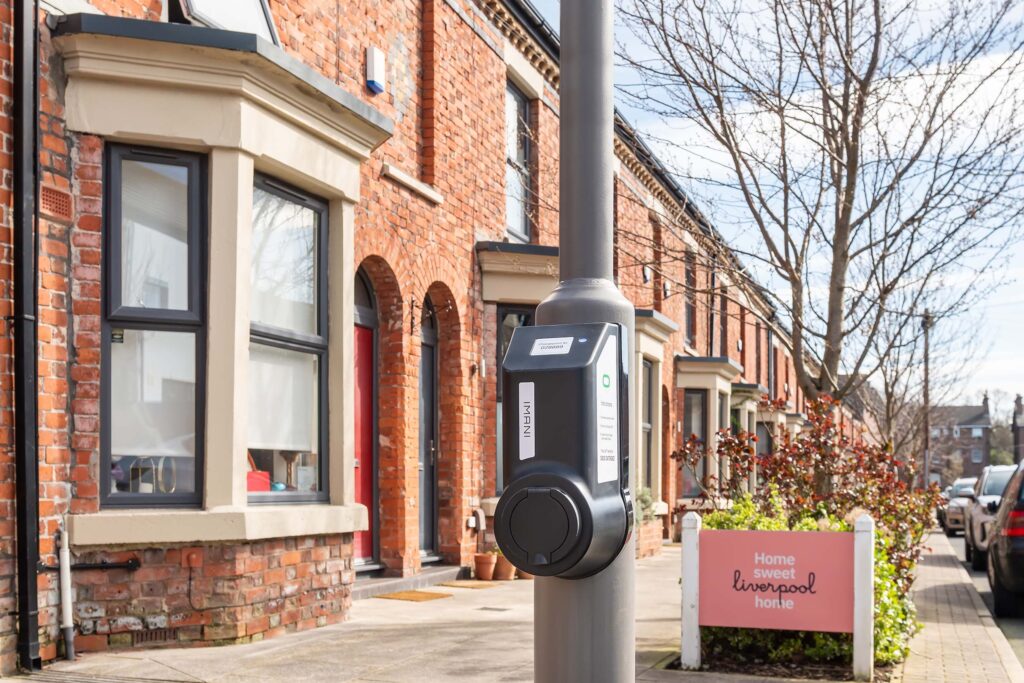

7kW lamppost charger

As standard

• 7kW Single Phase Fast Charge
• Plug-and-play setup – no on-site opening needed
• Designed and manufactured in the UK (not just assembled)
• OCPP 1.6 compliant – future-proof and back-office agnostic (OCPP 2.0.1 ready)
• IEC 61851-1 Mode 3 charge protocol
• Tethered or untethered 2.5mm² 3-core cable
• Compatible with all Type 2 (IEC 62196-2:2016) EVs and hybrids
• Durable and discreet: IK10, IP65
• Dimensions: 345mm (H) x 140mm (W) x 135mm (D)
• Weight: Max 4kg
• Made from 95% recycled polycarbonate — strong, sustainable, and good-looking
• Available in 3 standard colours: White, Black or Grey
• 3-year warranty (with option to extend)

• Rated supply: 230V / 50Hz

• Max output: 1 × 32A

• Built-in PEN fault detection

• 6mA DC internal leakage fault protection (compliant with BS 7671:2018)

• Overcurrent protection

• Lockable smart socket — secure, simple access

• BS7671:2018 compliant

• UKCA marked

• OCPP 1.6 (back-office agnostic, future-ready)

• ELEXON approved

• OLEV approved (EVHS & WCS schemes)

• ENA approved

• EMC Directive 2014/30/EU (EMCD)

• Interoperable with all market-leading software

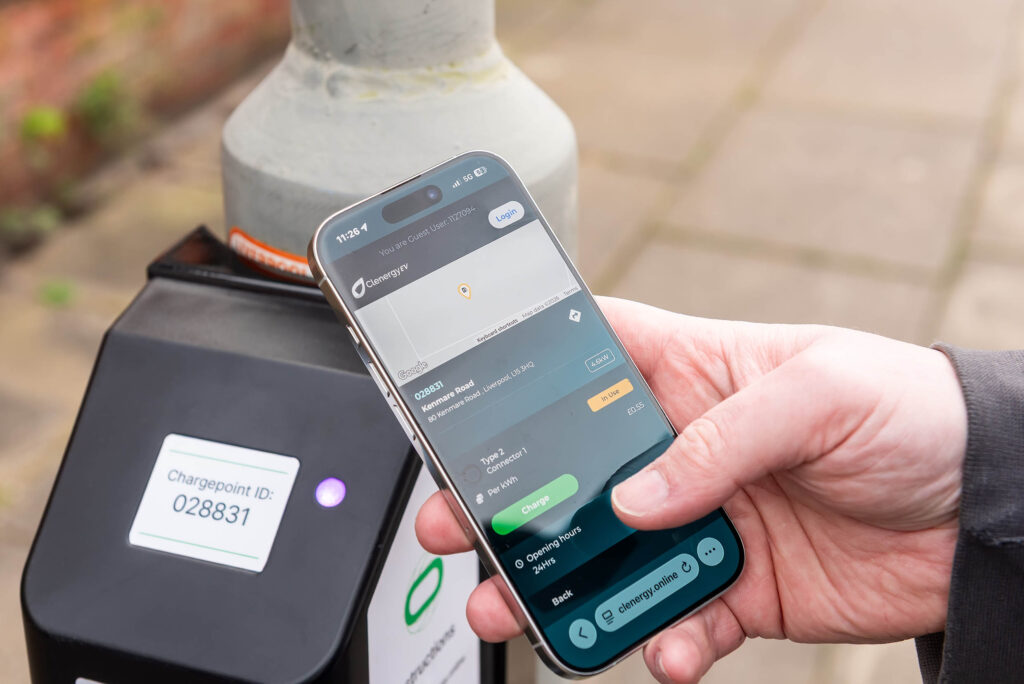

• App-based: Control switch, security, usage, and energy monitoring

• Remote firmware updates – no hassle, just updates

• Inbuilt live monitoring — so you’re never caught short

• Quick to install, simple to manage
• Rear or side cable entry
• No need to open on-site – plug in and go
• No civils. No stress

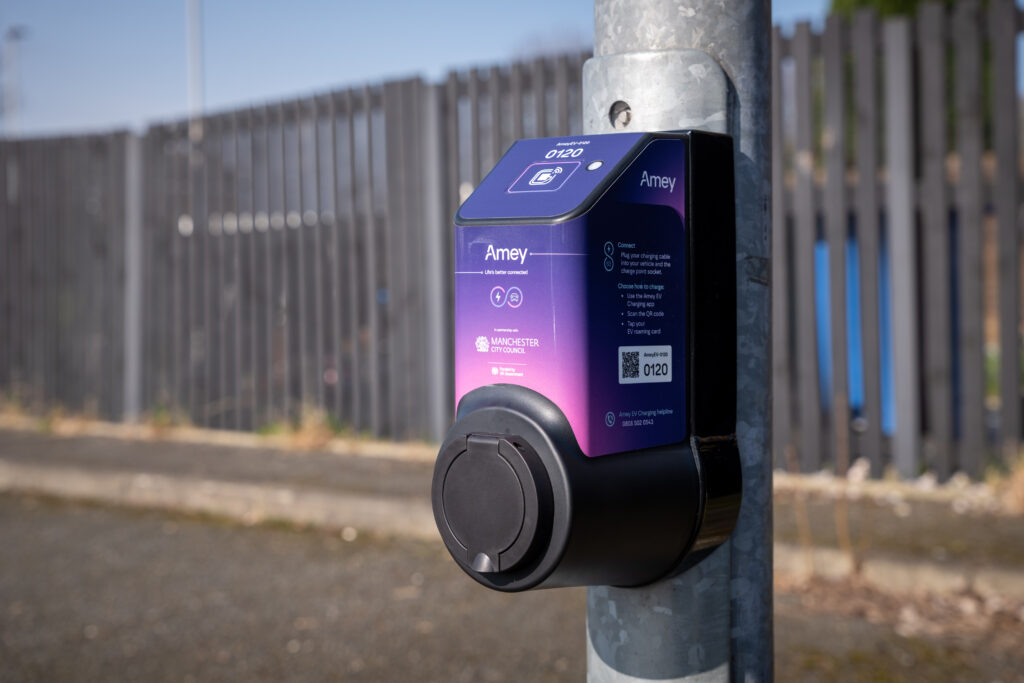

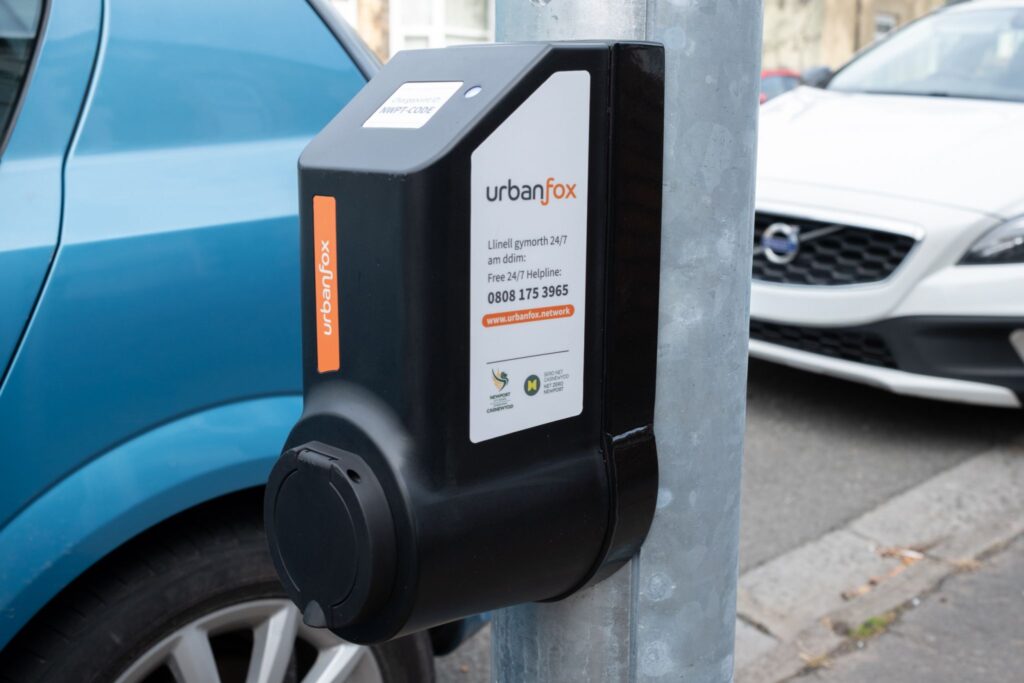

• Mounts discreetly (but not too discreetly) to a post or bollard

Whether you’re a tap-and-go type or still loyal to your RFID card, we’ve got you covered:

✔️ Contactless (all major debit/credit cards)
✔️ Apple Pay
✔️ RFID
✔️ QR code
✔️ App
✔️ Even phone payments

• Anti-graffiti finish — because not all art is welcome

• Solar charge — sustainability, powered up

• Available in any standard RAL colour or custom wrap (subject to minimum order quantities)

1. Who’s your current provider?

2. How’s your current infrastructure performing (up-time wise)?

3. Where are the columns located – front or back of the path?

4. If back of path, is a secondary feed planned (i.e. to a bollard or pillar)?

5. Column spec:

   1. Material

   2. Manufacturer

   3. Door type (wrap around or flush? Twin lock or single)?

6. Can you send us a photo of the door aperture?

7. What’s the fuse rating in the column?

8. Has a signal strength test been done?

   • If yes, is there a preferred network provider?

9. Who will be the Charge Point Operator (CPO)

10. What back-office will you be using?

11. Who’s handling the installation?
